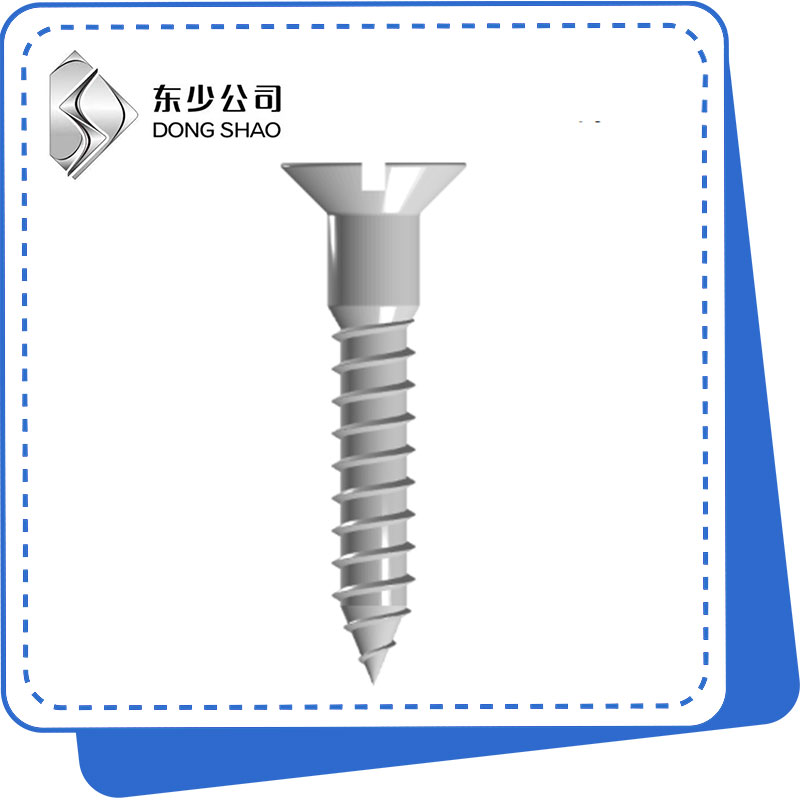

Slotted Countersunk Head Wood skru

DONGSHAO ni a ọjọgbọn olori China Slotted Countersunk Head Wood skru išoogun pẹlu ga didara ati reasonable owo. Kaabo lati kan si wa.

Fi ibeere ranṣẹ

ọja Apejuwe

Ga didara Slotted Countersunk Head Wood skru ti wa ni funni nipasẹ China olupese DONGSHAO. Ra Slotted Countersunk Head Wood skru ti o jẹ ti ga didara taara pẹlu kekere owo.

Awọn oniwe-Sloted countersunk ori igi skru le gidigidi mu awọn iṣẹ ṣiṣe ti atunse ati ikole, fifipamọ awọn akoko ati eda eniyan resources.Slotted countersunk ori igi skru ni o wa gun-pípẹ ati reusable, eyi ti o le din ikole owo ati ki o din egbin ti awọn ohun elo.

Dara fun ile, ile ise, ikole ati awọn miiran yatọ si oko, le ṣee lo fun igi awọn ọja, farahan ati awọn miiran yatọ si ohun elo, le ṣee lo fun ojoro, pọ ati ohun ọṣọ ati awọn miiran fields.Slotted countersunk ori igi dabaru lẹhin ti o muna didara iṣakoso ati ayewo, pẹlu ohun elo ti o lagbara, iduroṣinṣin, ipata ipata ati resistance resistance, le pese ipa titunṣe igbẹkẹle, dinku eewu ailewu ni ikole.

Iru slotted countersunk ori igi dabaru o kun da lori awọn oniwe-ni pato ati awọn ajohunše. Fun apẹẹrẹ, ni ibamu si China ká orilẹ-boṣewa GB/T100-1986, slotted countersunk ori igi skru le ti wa ni pin si yatọ si ni pato, pẹlu M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10 ati be be lo. lori. Ni afikun, awọn iṣedede miiran ati awọn pato wa, gẹgẹbi boṣewa German DIN97-2016, boṣewa Japanese JISB1135-1995 ati bẹbẹ lọ.

Ọja Paramita

(mm)	1.6	2	2.5	3	3.5	4	4.5	5	5.5	6	7	8	10
P	0.8	0.9	1	1.2	1.4	1.6	1.8	2	2.2	2.5	2.8	3	3.5
ds min	1.46	1.86	2.25	2.75	3.2	3.7	4.2	4.7	5.2	5.7	6.64	7.64	9.64
ds max	1.6	2	2.5	3	3.5	4	4.5	5	5.5	6	7	8	10
dk max	3.2	4	5	6	7	8	9	10	11	12	14	16	20
dk min	2.9	3.7	4.7	5.7	6.64	7.64	8.64	9.64	10.57	11.57	13.57	15.57	19.48
k max	1	1.2	1.4	1.7	2	22	27	3	3.2	3.5	4	4.5	5.8
n min	0.4	0.5	0.6	0.8	0.9	1	1.2	1.2	1.4	1.6	1.8	2	2.5
n max	0.65	0.75	0.85	1.05	1.15	1.35	1.55	1.55	1.75	1.95	2.15	2.35	2.85
t max	0.72	0.82	0.96	1.11	1.35	1.45	1.7	1.94	2.04	2.19	2.55	2.8	3.5
t min	0.48	0.58	0.64	0.79	0.95	1.05	1.3	1.46	1.56	1.71	1.95	22	29
