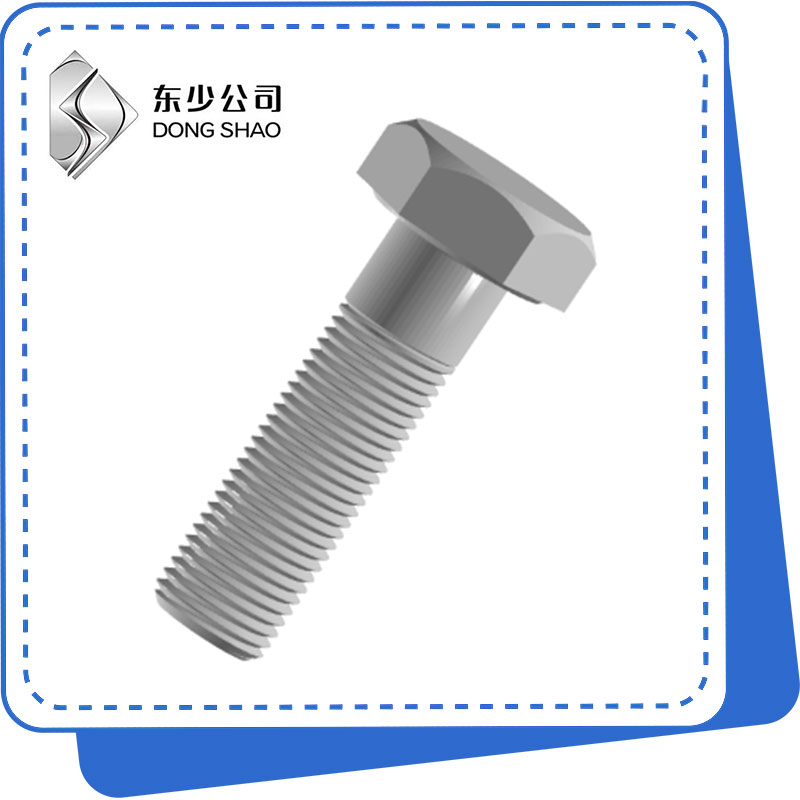

Fine-Pitch Hexagon Head boluti

A ṣe itẹwọgba lati wa si ile-iṣẹ wa lati ra tita tuntun, idiyele kekere, ati didara didara Fine-Pitch Hexagon Head Bolts, DONGSHAO nireti lati ṣe ifowosowopo pẹlu rẹ.

Fi ibeere ranṣẹ

ọja Apejuwe

Hebei Dongshao Fastener Manufacturing Co., Ltd jẹ olupese ti o mọye daradara ati olupese ti Fine-pitch hexagon head bolts ni China.

Awọn boluti ori hexagon Fine-pitch ti a ṣe nipasẹ ile-iṣẹ jẹ irin ti o ga julọ ti o ni agbara giga, lile ati idena ipata, agbara to dara ati igbesi aye iṣẹ pipẹ.

Apẹrẹ ọrun tinrin rẹ ngbanilaaye boluti lati gbe ẹru diẹ sii ati ipa iṣakojọpọ to dara julọ nigba lilo, ati tun jẹ ki fifi sori ẹrọ rọrun ati irọrun diẹ sii.

Fifi sori ẹrọ ti o rọrun: ori hexagonal ati apẹrẹ okun jẹ ki o rọrun lati fi sori ẹrọ, lakoko ti o di mimu pẹlu afọwọṣe aṣa tabi awọn irinṣẹ ẹrọ, idinku akoko fifi sori ẹrọ gbogbogbo ati idiyele.

Pẹlu orisirisi awọn pato ati awọn titobi: Fine-pitch hexagon head bolts wa ni orisirisi awọn pato ati awọn titobi lati pade awọn iwulo oriṣiriṣi. Eyi tun le ṣe ilọsiwaju irọrun rira.Fine-pitch hexagon head bolts le ṣee lo ninu awọn ọkọ, ọkọ oju omi, ọkọ ofurufu, ikole, ẹrọ ati awọn aaye miiran, pẹlu ohun elo jakejado.

Ọja Paramita

(mm)	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52	M56	M60	M64
P	1	1	1.5	1.5	1.5	1.5	1.5	1.5	2	2	2	2	3	3	3	3	3	4	4	4	4
ati max	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6	63	67	71
ds max	8	10	12	14	16	18	20	22	24	27	30	33	36	39	42	45	48	52	56	60	64
ds min	7.78	9.78	11.73	13.73	15.73	17.73	19.67	21.67	23.67	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26	55.26	59.26	63.26
ati min	14.38	17.77	20.03	23.36	26.75	30.14	33.53	37.72	39.98	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25	93.56	99.21	104.86
k max	5.45	6.58	7.68	8.98	10.18	11.715	12.715	14.215	15.215	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5	35.5	38.5	40.5
k min	5.15	6.22	7.32	8.62	9.82	11.285	12.285	13.785	14.785	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5	34.5	37.5	39.5
r min	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1	1	12	1.2	1.6	1.6	2	2	2
s max	13	16	18	21	24	27	30	34	36	41	46	50	55	60	65	70	75	80	85	90	95
s min	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1	82.8	87.8	92.8
